TPS II EURO VP 440003

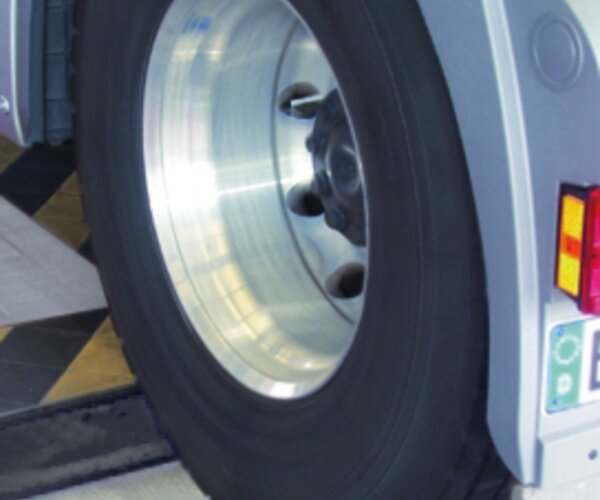

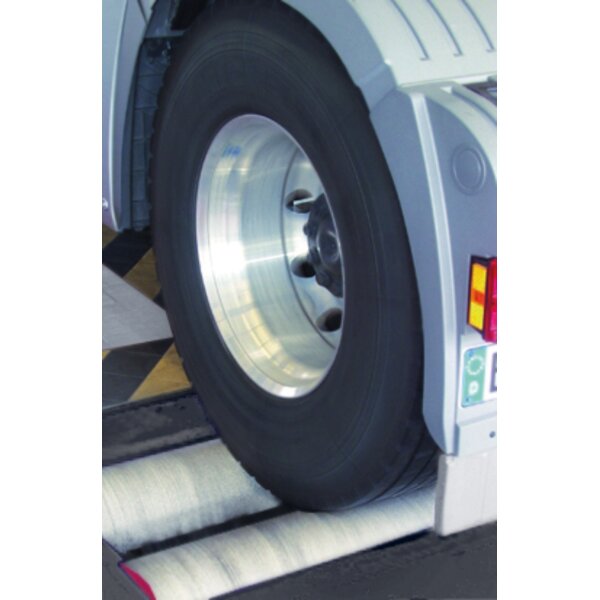

The TPS II EURO speedometer test bench is perfect for assessing deviations in the speedometer speed of cars and trucks of up to 13.0 t. The speedometer test can be performed with up to ten freely selectable test points. In addition, the distance measurement can be performed with up to ten freely selectable test points. With the hydraulic lifting bar as an exit aid for the drive axle, a problem-free test sequence is always guaranteed.

product details / scope of delivery

Description:

  • Ideal for assessing the variation in Tachometer speed in cars and trucks
  • Tachometer testing with up to ten freely selectable test points
  • Measurement of distance travelled with up to ten optional test points

*Hydraulic lifting bar as an exiting aid for the drive axle

  • Automatic analysis of:
    • Speed according to tachometer display (V target)
    • Actual speed (V actual)
    • Deviation in %
    • Max. speed
    • Distance travelled (remote controlrecommended)
  • Graphic representation on PC screen
  • Self-supporting frame varnished in high-quality powder coating: Anthracite Grey, RAL 7016
  • Rollers wet painted: Ruby Red, RAL 3003


Downloads

Sales documents

Brochures
Brochure TPS-Series
DE FR
Brochure (Printable version) TPS-Series
DE
Technical Datasheet
Technical Datasheet TPS II EURO
DE EN
Technical Datasheet (Printable version) TPS II EURO
DE EN

Technical Data

Technical Data

Axle load13000 kg
Min. track820 mm
Max. track2620 mm
Roller diameter318 mm
Roller axle distance457 mm
Roller length900 mm
Drive power (hydraulic unit)2.5 kW
Operating pressure (lifting bar)105 bar
Liftingbar lifting power10 t
Hydraulic fluid quantity f. hyd. unit5 l
(included)
gG fuse16 A
Power supply3/N/PE 400 V 50 Hz
Roller set dimensions (H x W x L)400 x 840 x 3000 mm
