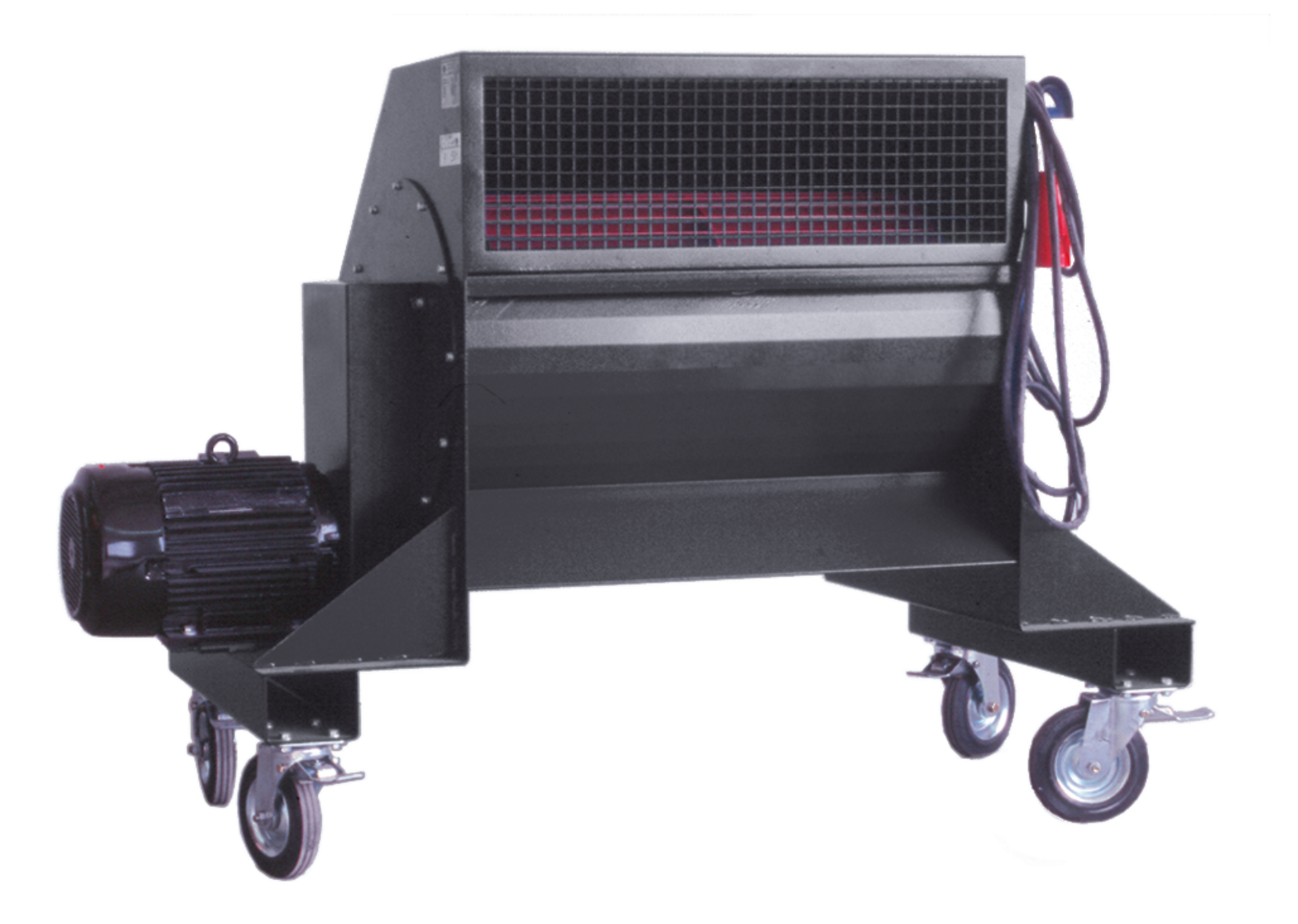

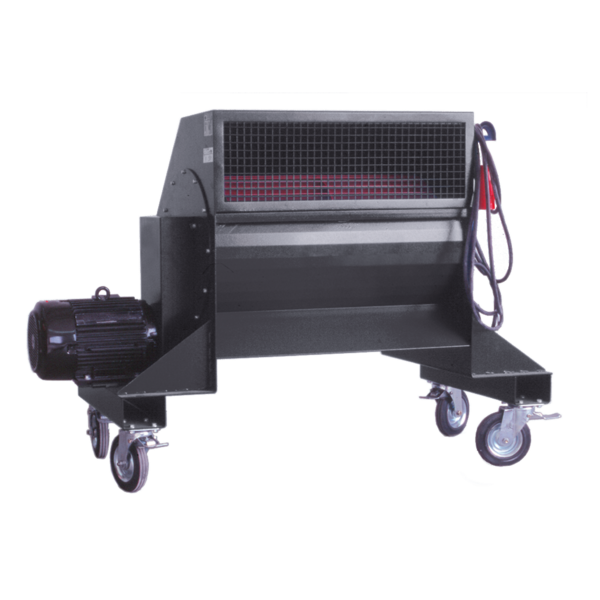

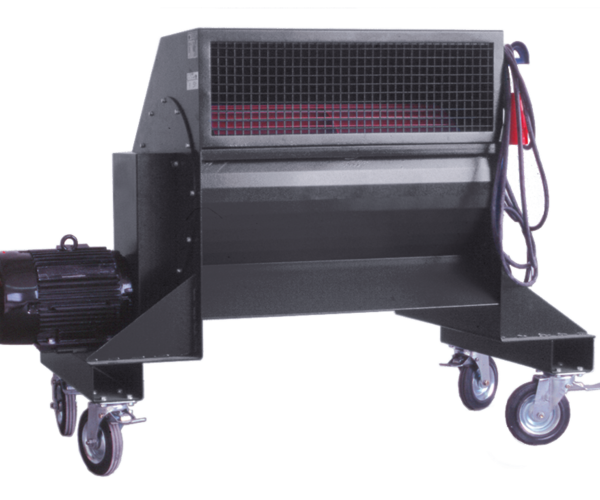

AIR 7/1 TRUCK VP 160010

The powerful radial air stream fan AIR 7/1 TRUCK with wide and high outlet channel is designed for vehicle cooling and prevents heat accumulation especially on large vehicles. The universally applicable air stream blower is designed for cooling trucks and prevents damage to the vehicle and drive units. Four steerable, rubber-tired fixed castors also provide flexible and uncomplicated steering of the AIR 7/1 TRUCK.

product details / scope of delivery

Description:

  • Powerful universal air-stream fan designed specifically for trucks
  • Wide and elevated exhaust passage for targeted air routing towards the vehicle radiator and underneath the vehicle in order to avoid heat build-up
  • Prevents vehicle damage and overheating of the drive units
  • Easily manoeuvrable with 4 rubber-tyred steerable fixed castors
  • Varnished with high-quality powder coating: Window Grey, RAL 7040

Downloads

Sales documents

Brochures
Brochure AIR
DE EN ES FR
Brochure (Printable version) AIR
DE EN ES FR
Technical Datasheet
Technical Datasheet AIR 7/1 LKW
DE EN
Technical Datasheet (Printable version) AIR 7/1 LKW
DE EN

Technical Data

Technical Data:

Air power26500 m³/h
Airflow velocity98 km/h
Motor power7.5 kW
Fuse35 A
Power supply3/N/PE x 400 V 50 Hz
Air outlet opening (L x W)890 x 260 mm
Average air outlet height1095 mm
Weight350 kg
Dimensions (H x W x L)1265 x 700 x 1620 mm
