product details / scope of delivery
Description:
- Rapid determination of defects and wear and tear on steering parts, wheel bearings, spring system and suspension
- Powerful and even movement thanks to hydraulic drive
- Low-noise oil-submerged hydraulic unit
- Slide bearings and particularly robust chrome-plated circular guides
- Extremely robust and low-maintenance design with optimum service life
- Counter-set cross and longitudinal movement of the test plates

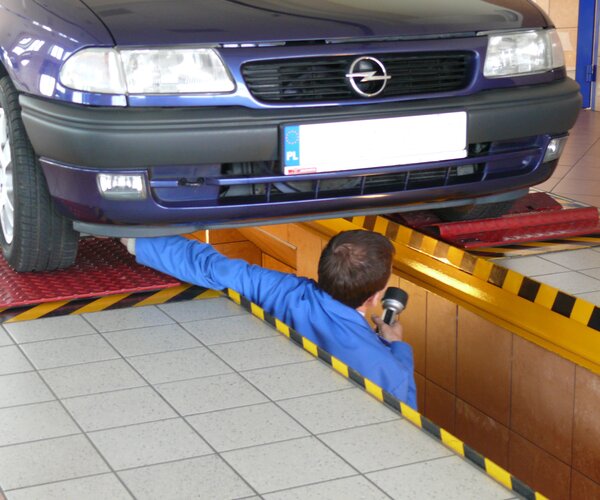

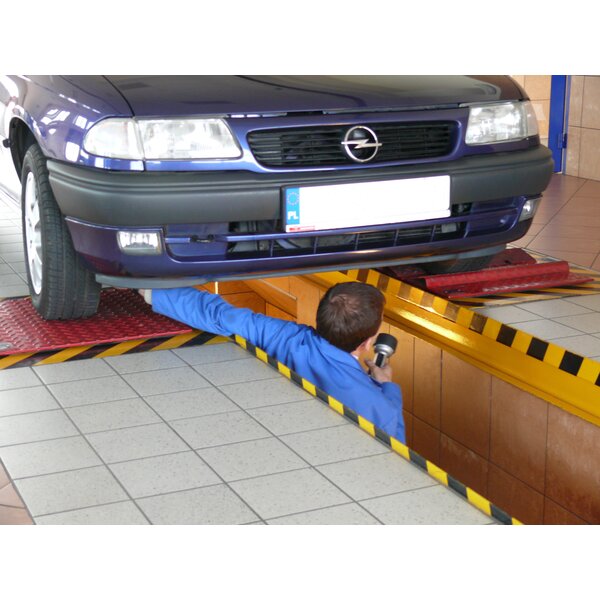

- One-hand operation without lifting the vehicle
- Wireless radio inspection light with LED for performing and controlling the test plate movements
- Different operating modes including automatic mode
- Compliant with directive 2014/45/EU
- Optional: additional different test plate movements
- Optional: aluminium cable inspection light
Scope of delivery:
- 2 pieces test plates
- Electrical control box
- Hydraulic power unit
- Radio hand lamp with charger and power supply unit
- Operating manual
- EC Declaration of Conformity CE
Downloads
Sales documents
| Brochures | ||
|---|---|---|
|
Brochure AXPLAY
|
||
|
Brochure (Printable version) AXPLAY
|
||
| Technical Datasheet | ||
|---|---|---|
|
Technical Datasheet PMS 3.5
|
||
|
Technical Datasheet (Printable version) PMS 3.5
|
||
Technical documentation
| Operating Instructions | ||
|---|---|---|
|
Operating Instructions PMS | LMS
|
||
Technical Data
Technical data:
| Max. axle load | 3500 kg |
| Max. wheel load | 1750 kg |
| Test plate movement | 100 mm |
| Test plate speed | 70 mm/s |
| Dimensions of test plate (L x W x H) | 625 x 625 x 8 mm |
| Installation depth | 175 mm |
| Max. thrust per side | 11 kN |
| Drive power | 2.5 kW |
| Operating pressure | 120 bar |
| Power supply | 3/N/PE 400 V 50 Hz |
| Fuse gG | 16 A |
| Hydraulic oil volume (not included) | 15 l |
